MFS

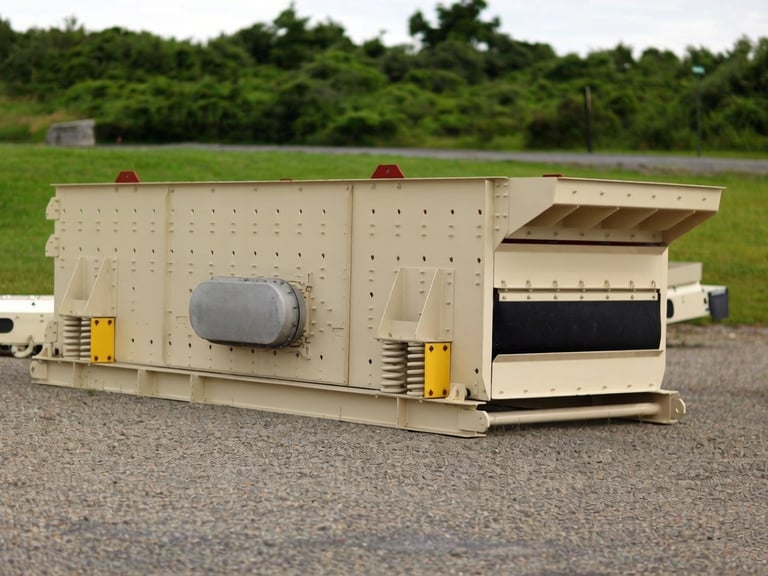

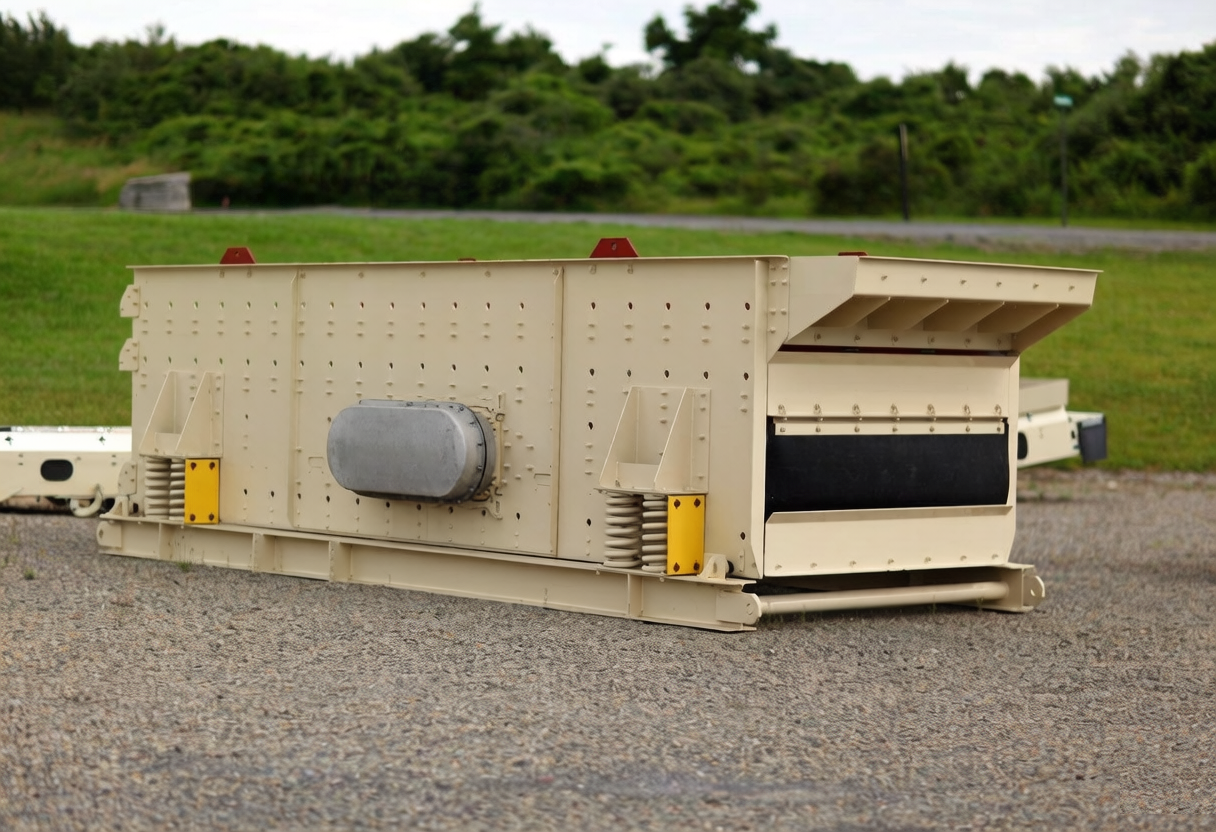

Horizontal Screen

The MFS series horizontal screen features elliptical motion and is used for dry or wet screening of large, medium and small-sized materials, with a compact low-profile design suitable for mobile crushing and screening plants.

Request Specifications

Screening equipment

Features

• Customizable Vibration Dynamics: Key parameters—including frequency, amplitude, and vibration direction angle—can be precisely adjusted. This flexibility allows the screen to adapt to diverse process conditions and specific material characteristics.

• High-Energy Elliptical Motion: The powerful elliptical trajectory enhances material stratification, significantly boosting both throughput capacity and screening accuracy for challenging materials.

• Low-Profile Horizontal Design: Engineered for horizontal installation, the compact structure minimizes overall height. This space-saving design is perfectly suited for integration into mobile crushing and screening plants.

• Versatile Deck Configurations: Available in double or triple-deck layouts to meet varied production demands, providing efficient separation solutions for multiple end-product specifications.

— MAIN SPECIFICATIONS
